1.5um High Power Chirped FBG for Fiber Laser
Product Description:
Connet high-quality 1.5um fiber grating reflectors (also called Fiber Laser cavity mirrors) are written in specialty double clad optical fiber with optimized chirped Fiber Bragg Grating (FBG) writing technology. They are specially designed for 1.5um high power continuous and pulsed fiber lasers, suitable for single-mode fiber to the large mode field (LMA) fiber, the pump power handling capacity can reach more than 50W.
Connet can provide various bandwidths and accurately matched high and low reflectivity gratings for different applications.
Features:
● Extremely Low Temperature Slope● High Conversion Efficiency
● High Power Handling
● Outstanding Reliability
● Wide Variety of Fiber Types
Applications:
● High Power Fiber Laser● Pulsed Fiber Laser
High Power Fiber Laser Configuration:
Matched HR/LR Spectrum:
Specifications:
|
Parameter |
Unit |
Specification |
|
|
Typical Central Wavelength1 |
nm |
1550, 1560 |
|
|
Tolerance on Central Wavelength |
nm |
1 |
|
|
Type of Reflector |
|
HR |
LR |
|
Peak Reflectivity2 |
% |
>99.5 |
10±2 |
|
FWHM2 (3dB) |
nm |
0.5~3 |
0.1~1 |
|
Side Mode Suppression Ratio |
dB |
20 |
10 |
|
Wavelength Mismatch (LR to HR) |
nm |
0.2 |
|
|
Fiber type3 |
|
SM-1550-GDF |
|
|
Power Handling of Pump |
W |
50 |
|
|
Input/output Fiber Length |
m |
1 |
|
|
Package Type |
|
Recoated Only |
|
1. Other central wavelength available on request.
2. Other bandwidth and reflectivity available on request.
3. Other fiber types available on request

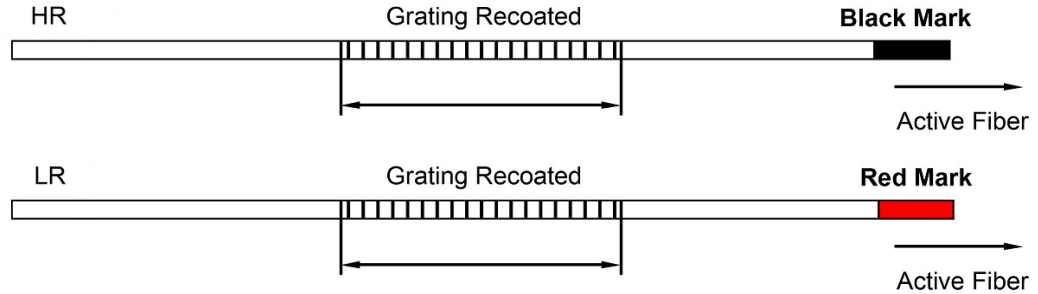

Package Dimensions:
Ordering Information:
F-1111-2-333-4-5-66·1111: Fiber Type
0912: 9/125um, SM-1550-GDF (NA=0.12/0.46)
·2: Grating type
H: High Reflector
L: Low Reflector
·333: Central Wavelength in nm
550: 1550nm
·4: Bandwidth in nm
2: 2nm
*05: 0.5nm
·5: Package
M: Metal Housing
R: Recoated
·66: Reflectivity in %
99: 99%
10: 10%
